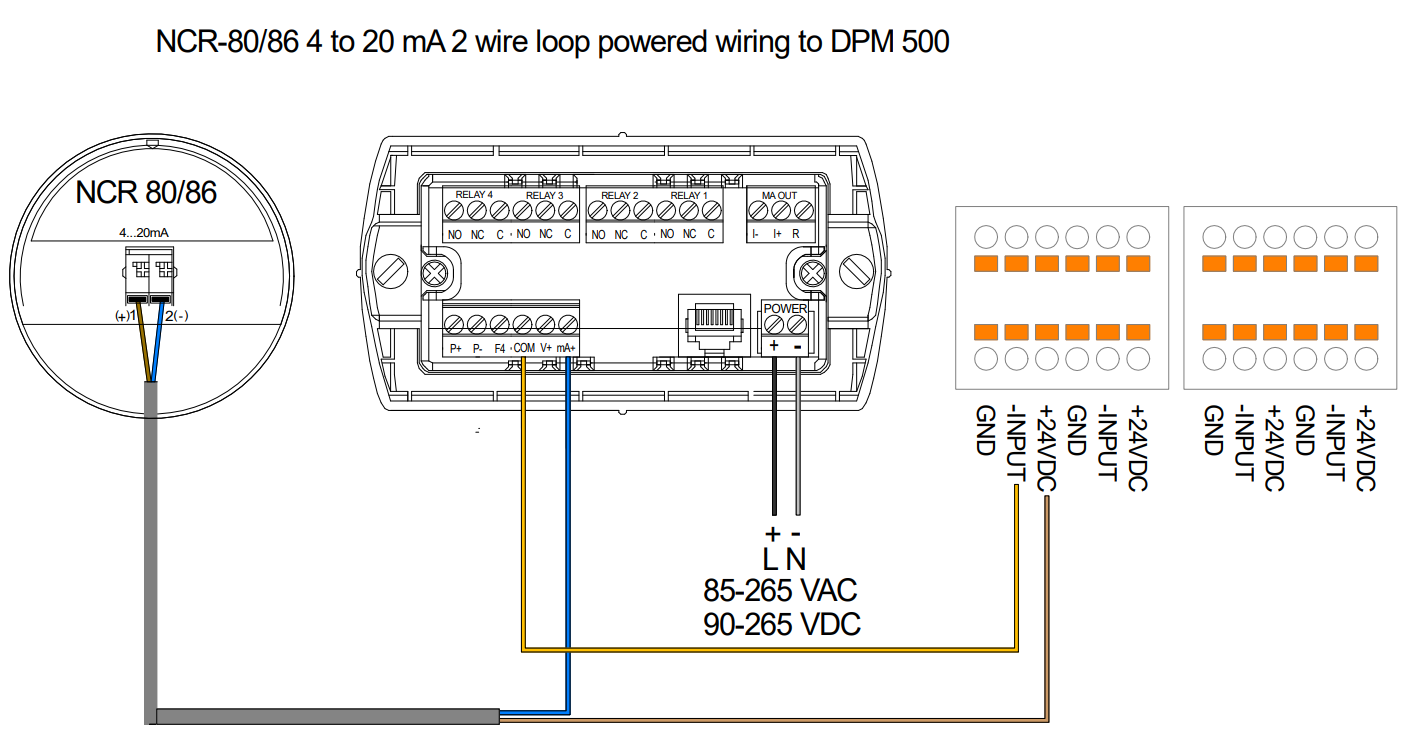

Wiring NCR radar to a Gateway and a DPM

If you have one of our CNCR radar instead of an NCR radar, it will connect the same way.  The positive (+) terminal of the radar would connect to the =24VDC terminal in the Gateway.  The negative (-) terminal from the radar would connect to the mA+ terminal on the DPM-500 display.  The COM terminal of the DPM-500 would connect to the -INPUT in the Gateway.
