SmartBob Not Responding to Control Commands

Problem: SmartBob Remote II unit fails to respond to control demands from interface device.

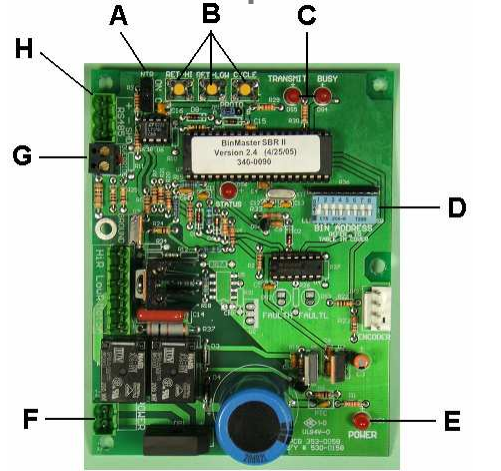

Solution: First check if the CYCLE button (B) works manually - if it does, you have a communications error. Inspect power cables on interface devices, communications wires, and cable connections. Ensure all devices are powered and RS-485 connections are secure. Check that protocols are properly set and binary addresses match between SBRII and controlling device.
