Cable Routing and Installation Issues

Problem: Cable doesn't route properly or becomes tangled during operation.

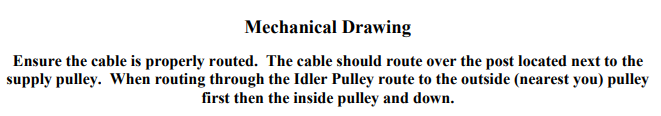

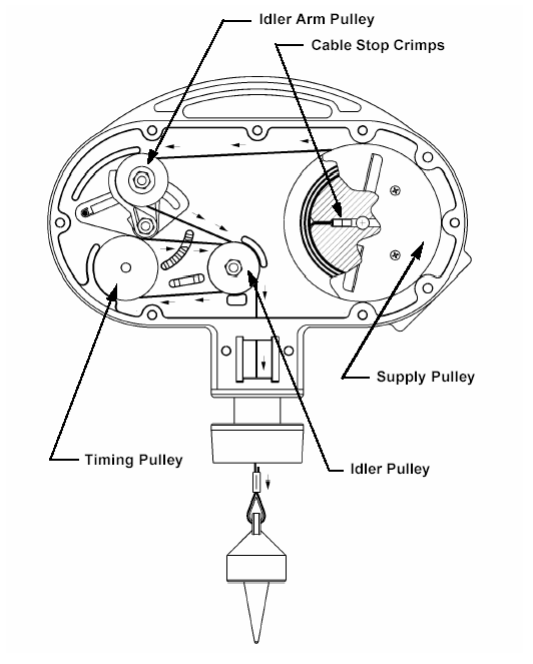

Solution: Ensure cable routes correctly over the post next to supply pulley. When routing through Idler Pulley, route to outside pulley first, then inside pulley and down. Check that cable and pulley assemblies are in good serviceable condition and replace worn parts.
